Advantages: 1. Customize max 23 parameters 2. 2 patents obtained (Design patent and Utility model patent ) 3. CE certificate 4. Bluetooth function of wireless outputting & printing 5. Mobile app compatible, convenient to be used in the small space 6. Online Software upgrade 7. Extended memory of 8G 8. ARM processor to offer higher speed, low power consumption. 9. 4 kinds of stylus ( probes) optional for the various work pieces dimension:5.5×2.1×1.9 inch Main Technical Specifications 16 Parameters Ra, Rq, Rz, Rv, Rp, Rm, Rt, RS, Rsm, R3z, R3y, Rz(JIS), Rku, Rsk, Rmax, Rpc Display Ra、Rq:0.005-16μm;Rz、Ry、Rt、Rp、Rv、Rmax、R3z:0.02-160μm;RS、RSm:1mm;Rmr:0-100%(%Rt);Rsk:0-100% Measuring Range ±20μm ±40μm ±80μm Resolution (Ra) 0.001μm Filter RC PC-RC GAUSS D-P Cut Off 0.25mm,0.8mm,2.5mm Probe Type Inductive Range 160μm Stylus Radius 5μm Measure Force 4mN (0.4gf) Stylus Material Diamond Stylus Angle 90° Number of cut-offs 1 to 5 Max Running Length 17.5mm/0.7inch Min Running Length 1.3mm/0.052inch Accuracy ≤±10% Traverse Speed 0.5mm / s, 1mm/s Output USB and bluetooth Power Built-in rechargeable Battery Dimensions in mm 140×52×48 Weight 440g Standard Delivery Main Unit 1 pc standard Stylus 1 pc Stylus sheath 1 pc Calibration block and support 1 pc of each USB Cable and software for PC 1 pc Android APP for mobile device 1 pc Adjustable Stand 1 pc AC/DC Adaptor 1 pc Optional Accessory Extension Rod PRER001 Standard Stylus PR-RS100 Deep Groove Stylus PR-RS131 Curved Stylus PR-RS110 Groove Stylus PR-RS130 Wireless Printer PRT100, PRT200, PRT300 Test Stand PRTA620 3.Packaing Each set in a blue plastic carrying case(27.8*22*12.5) ,then in outer carton(33.5*18.5*29)


Type : Products

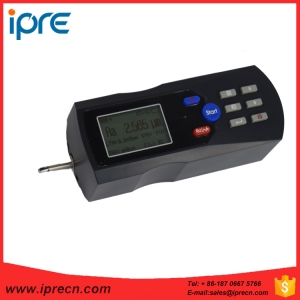

Name : portable high accuracy surface roughness tester
Category : Other Products
Minimum Order Quantity : 1
Unit : SET
Price / Unit : $1000

 - portable high accuracy surface roughness tester

portable high accuracy surface roughness tester
