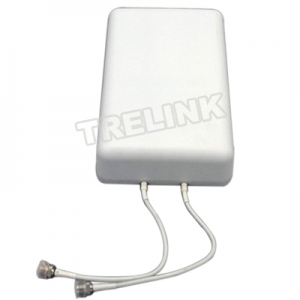

The TreLink TLPA-627-8-80X-2N is a high performance MIMO panel antenna provides broad band and crossed polarization. It is designed for 698-960 MHz/1710-2690MHz. The typical applications include : 700 MHz and cellular applications,DAS (Distributed Antenna Systems),AWS (Advanced wireless services) and PCS (Personal communications service) band applications,In-building wireless networks and LTE networks,IEEE 802.11b/g applications. Electrical Specifications Model TLPA-627-8-80X-2N Frequency Range 698-960 MHz 1710-2700 MHz Gain 8 dBi 9.2 dBi VSWR ≤2.0：1 Polarization ±45° F/B Ratio ＞14 dB ＞20 dB Horizontal Beamwidth 95° 80° Vertical Beamwidth 68° 65° Input Impedance 50 Ω Maximum Power 50 W Lightning Protection DC Ground Mechanical Specifications Connector 2*N female or customized Antenna Dimension 295*180*70 mm Weight 0.72 kg/1.58lb Radome Material Weatherproof ABS Mounting method Fit with nut Wind Velocity 210 km/h Working Temperature -40~+60℃
Type : Products Name : MIMO 4G/LTE Panel Antenna 698-2700 MHz 9 dBi Cross Polarized Category : Other Products Minimum Order Quantity : 100 Unit : OTH
